NH-75
AIRKING
Heated regenerative adsorption dryer
Product Description
Model: NH-75
Pressure drop:≤0.021Mpa
Inlet pressure : 0.45-1.0Mpa(0.7Mpa)
Inlet temperature :≤40℃
Outlet air pressure dew point :-20℃～-60℃
Inlet oil content :0.08ppm(0.1mg/m³)
Dust grain diameterin outlet air :≤60μm
The heated regeneration adsorption dryer is a kind of energy-saving and high-efficiency dryer. It is a product developed by absorbing the advantages of thermal regeneration and non-thermal regeneration. The regenerated gas is used for purging and regenerating the bed of the adsorption tower after micro heating, which can save gas consumption and make the adsorption work longer.
Product advantages
* 30% residual filling is anti-aging, which can easily cope with short period of severe working conditions;
* Excellent simplified design to ensure no less than 5.2 seconds of contact time;
* Layered dense filling process, low risk of adsorbent wear, long life, reliable dew point;
* Adopt well-known valve parts with low risk of leakage, long life and less maintenance
* Fully intelligent control, powerful parameter recording function can realize accurate control of the whole process;
Smart Control
Easy to use, advanced PLC controller helps to maintain dryer performance at optimum levels, while constantly monitoring functions and provides maintenance alerts as well as protection notifications.
Reliable Operation
High-strength desiccant along with durable valves and components provide extended life.
Reduced Energy Use
Low pressure drop design saves on energy costs and provides an economical drying solution.
Easy to Maintain
A low profile design and easy access to components simplifies installation and maintenance.

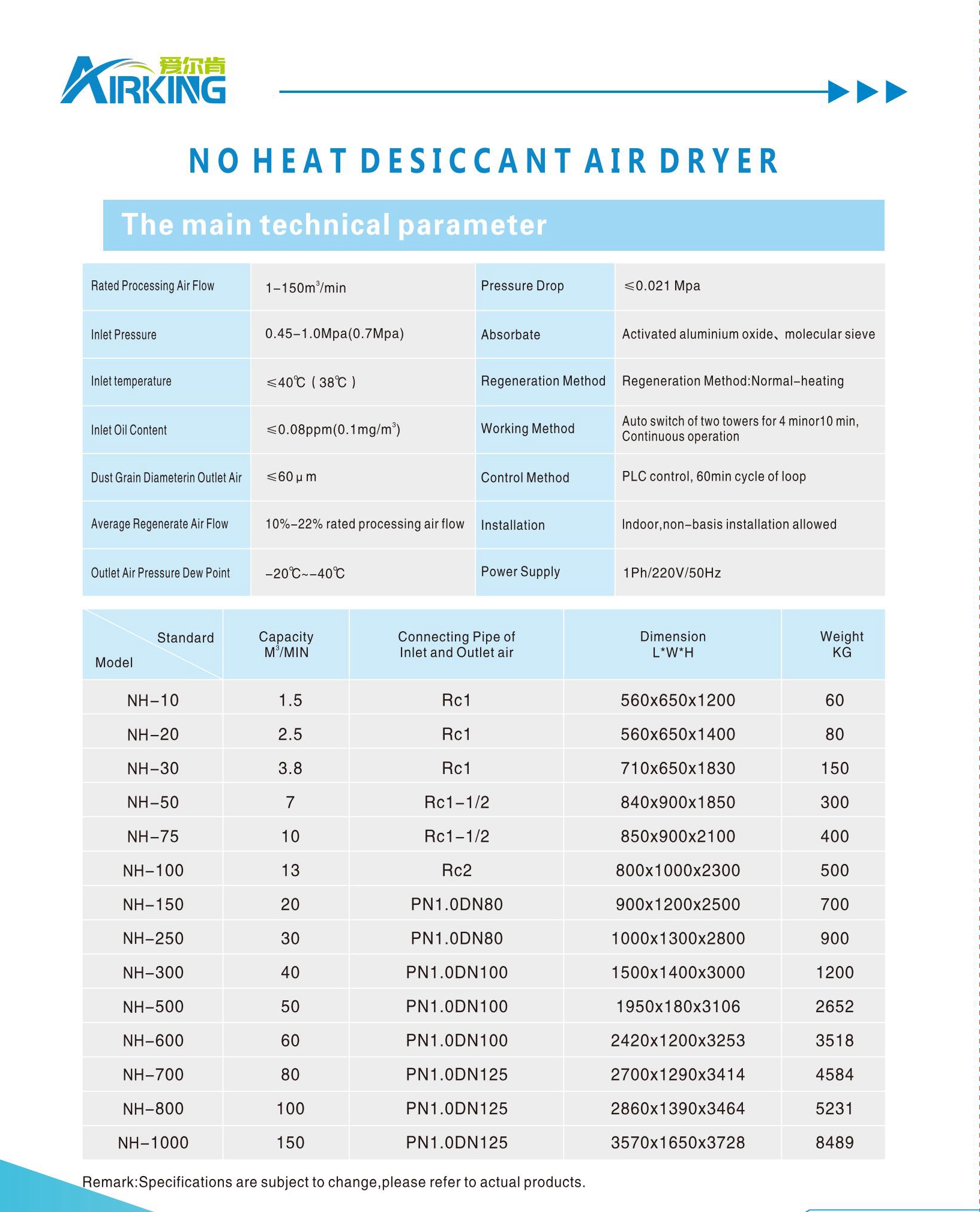

Data Sheet
Company Profile
Dongguan City Jiubei Compressor Parts Co.,LTD is a large enterprises which is professional in Screw air compressor and air compressor parts R&D and production. AIRKING is one of a famous compressor brand belong to Dongguan City Jiubei Compressor Parts Co.,LTD , AIRKING screw air compressor shipped to worldwide customer in Malaysia,Vietnam, Singapore, Indonesia, Thailand, India, Bangladesh,Sri Lanka, Mauritius, Australia, Saudi Arabia, Israel, Russia, Croatia, Brazil, Peru, USA, Mexico, Canada, Dominican Republic.... widely used in diverse industry.
AIRKING compressor design, manufacturing at a high starting point, advanced technology, superior level of systemic, its core competencies to guide the development trend of industry, stable and reliable. AIRKING import advanced technology from Europe, through constant practice and improvement, design a new generation of AIRKING air compressor.
Improved quality assurance manual, advanced production process, control management program files comprehensive, standardized, ensuring high quality brand products “AIRKING”, stable and durable. High quality, intimate service get the praise from users all over the world.
